Rapid doors

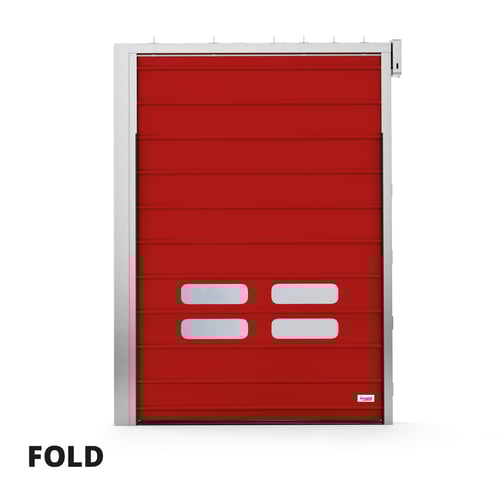

FOLD: fold-up doors
Available in 1 models
The FOLD UP door is strong thanks to the folded frame in 3 mm thick galvanised steel sheet.
The folding system consists of a sheet (PVC coated fabric) strengthened internally by galvanised steel tubes placed inside welded pockets. The diameter of the strengthening tubes varies according to the resistance class for the required air pressure. The sheet assembly is lifted thanks to belts secured above the winding shaft.
The folding system consists of a sheet (PVC coated fabric) strengthened internally by galvanised steel tubes placed inside welded pockets. The diameter of the strengthening tubes varies according to the resistance class for the required air pressure. The sheet assembly is lifted thanks to belts secured above the winding shaft.
Highlights
Sliding: on plastic profiles fixed on the frame, smoother sliding curtain support
Fabric: the sheet assembly is lifted thanks to belts secured above the winding shaft.
Technical Characteristics
| Max dimension | L max 10000 mm |
| Maximum speed | opening 0,8 m/s |
| Fabric | PVC 900 g/m2 |
Certifications
| Air pressure resistance | Available in class 2 / 3 / 4 depending on requirements |
Applications
-
Outdoor
Security Systems
Primary safety
Secondary safety
Safety (option)
Portholes available
Available colors
Templates
Accessories
