    Rapid doors

    FREEZER: for low temperatures

    Available in 2 models

    The FREEZER rapid roll-up door is characterised by an operating temperature of up to -25°C, with a maximum temperature difference of 30°C between the inside and outside of the cold store room. Suitable for food environments and minimise the release of cold when the store rooms are opened.
    FREEZER: for low temperatures

    Compare models ()

    Highlights

    scorrimento-porte-freezer

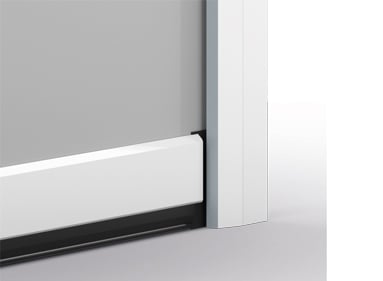

    Sliding: lower polyethylene bar complete with seal on the ground and rigid side spatulas

    motore-riscaldato-freezer

    Automation: protected heated automation

    Sistema-di-riscaldamento

    Heating system: the vertical uprights and inside the upper guide box

    Technical Characteristics

    Max dimension L 3000 x H 4000 mm
    Maximum speed opening 0,8 m/s
    Fabric Special grey sheet, reduces the formation of condensation to a minimum λ = 80 W/m2K thickness 1.4 mm
    Operating temperature Minimum internal temperature: -25°C
    ΔT maximum between inside and outside: 30°C
    U.R. external <30%



    Certifications

    Protection against impact hazards (EN 13241 - EN 12453) Compliant
    IP degree of control keyboard (CEI EN 60529) IP 66
    Sound power (EN ISO 3746 - EN ISO 11203) 70,3dB



    Applications

    • Refrigerated warehouses Refrigerated warehouses

    Security Systems

    Safety


    Templates2

    1 / 2
    FREEZER in painted sheet metal

    Porte rapide

    FREEZER in painted sheet metal

    • Magazzini frigoriferi
    Data sheet
    FREEZER-IX in stainless steel

    Porte rapide

    FREEZER-IX in stainless steel

    • Magazzini frigoriferi
    • Ambienti aggressivi
    Data sheet

    Accessories

    Support forwire/rope

    Support forwire/rope

    Wireless rod

    Wireless rod

    Radar

    Radar

    Mushroom push button

    Mushroom push button

    Infrared touchless sensor

    Infrared touchless sensor

    Loop detector 2 channels

    Loop detector 2 channels

    Trafic light

    Trafic light

    UPS

    UPS

    IRMOS remote monitoring system

    IRMOS remote monitoring system

    Pulling cable

    Pulling cable

    Radar programmer

    Radar programmer

    Remote control and receiver

    Remote control and receiver

    Numeric keypad with card reader

    Numeric keypad with card reader

    Flashing yellow

    Flashing yellow

    Door protection pole

    Door protection pole

    Floor heating

    Floor heating


    Back to products
