    Rapid doors

    ZIP K: sliding on zip with motor housed inside the winding tube

    Available in 3 models

    The ZIP K rapid roll-up door is high-speed ZIP door with a space saving design. The mantle has PVC zips that slide on self-lubricating polyethylene guides and connect the sheet for the entire height of the door ensuring water tightness and wind resistance (class 3). The “K” line features a motor housed inside the winding tube, which allows
    installation in corridors and any other limited space, and the opening speed is increased to 2.5 m/s.
    ZIP K: sliding on zip with motor housed inside the winding tube

    Compare models ()

    Highlights

    cerniera-porte-rapide

    Sliding: Guides made of self-lubricating material and PVC zips welded onto the sheet

    display-porte-rapide

    Display: built into the vertical upright

    telo-autoriparante-zip-k

    Self-repairing: self-repairing up to width = 4000 mm
    The plastic zip fitted in the uprights ensures that the sheet re-inserts itself into the guides after an accidental impact.

    motore-coassiale-porte-rapide-1

    Motor position: housed inside the winding tube

    Technical Characteristics

    Minimum net opening width 900 mm (1200 mm if optical barriers are installed)
    Max dimension L 3000 x H 3000 mm
    Maximum speed opening 2,5 m/s
    Fabric PVC 900 g/m2, option 1300 g/m2
    Operating temperature Not suitable to separate chiller and freezer environments.



    Certifications

    Resistance to water penetration (EN 12489) Classe 3
    Wind resistance (EN 12444) Classe 3



    Applications

    • Space saving Space saving

    Security Systems

    Primary safety

    Secondary safety

    Safety (option)

    Portholes available

    Custom

    Custom

    2 lines

    2 lines

    Without window

    Without window

    High visibility

    High visibility

    Vision

    Vision

    Exit

    Exit

    Available colors

    RAL 1003-1013-1021

    RAL 1003-1013-1021

    RAL 2004-3002-5010

    RAL 2004-3002-5010

    RAL 5012-6026-7035

    RAL 5012-6026-7035

    RAL 7037-7038-9005

    RAL 7037-7038-9005

    RAL 9006-9016

    RAL 9006-9016


    Templates3

    1 / 3

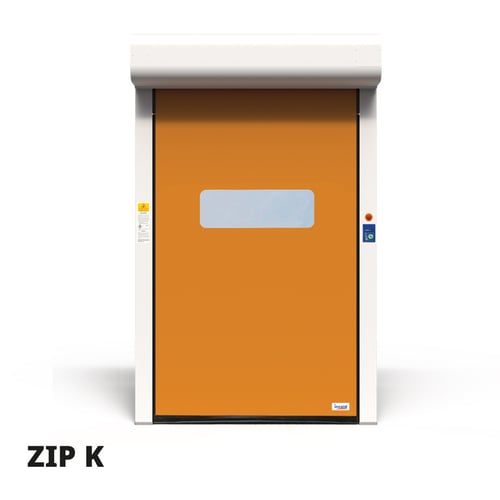

    ZIP K in pre-painted steel

    Porte rapide

    ZIP K in pre-painted steel

    • Space saving
    Data sheet

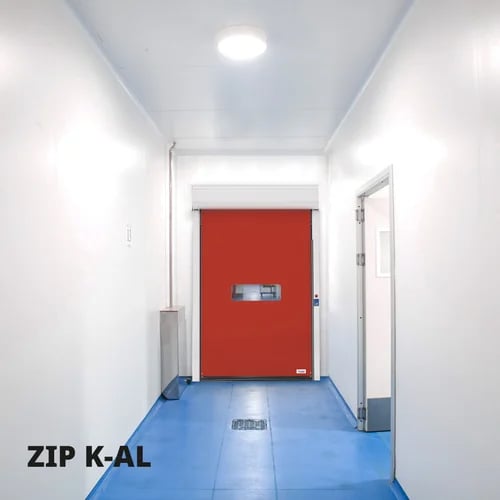

    ZIP K-AL in aluminium

    Porte rapide

    ZIP K-AL in aluminium

    • Space saving
    Data sheet

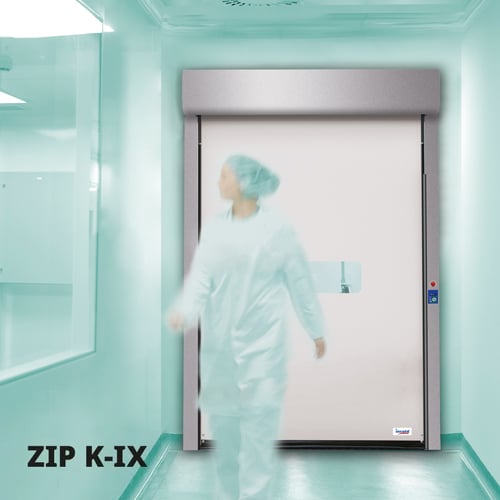

    ZIP K-IX in stainless steel

    Porte rapide

    ZIP K-IX in stainless steel

    • Space saving
    • Ambienti aggressivi
    Data sheet

    Accessories

    Support forwire/rope

    Support forwire/rope

    Wireless rod

    Wireless rod

    Radar

    Radar

    Mushroom push button

    Mushroom push button

    Infrared touchless sensor

    Infrared touchless sensor

    Loop detector 2 channels

    Loop detector 2 channels

    Trafic light

    Trafic light

    UPS

    UPS

    IRMOS remote monitoring system

    IRMOS remote monitoring system

    Pulling cable

    Pulling cable

    Radar programmer

    Radar programmer

    Remote control and receiver

    Remote control and receiver

    Numeric keypad with card reader

    Numeric keypad with card reader

    Flashing yellow

    Flashing yellow

    Door protection pole

    Door protection pole
